gear oil drain

Post by bob mcclary »

Cannot seem to figure out which screw is the drain screw for gear oil on Roughhouse. Is is the lowest one in the back part of the gear box? anybody have a picture of correct one on 2013 RH? thanks
Top
User avatar
spr0k3t
Member
Posts: 426
Joined: Wed Jun 06, 2012 12:14 am
Location: Kansas City

Post by spr0k3t »

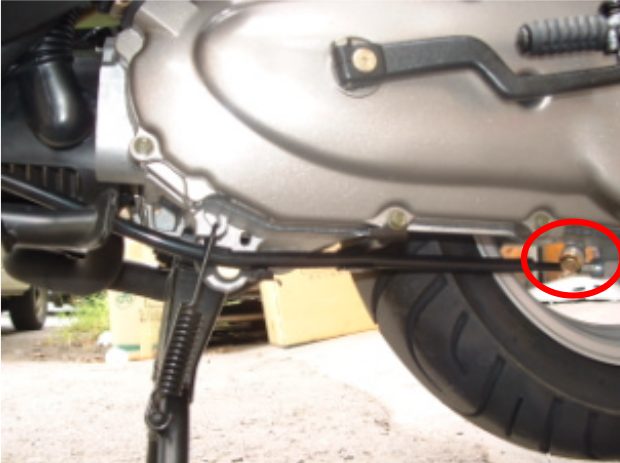

It's fairly easy to find really. Here's an image from the service manual. Let me know if you have any other questions.
Attachments
Final Gear Drain.jpg
Final Gear Drain.jpg (43.58 KiB) Viewed 207 times
