2T Service Station Manual Photo Error

[larrylarry75]

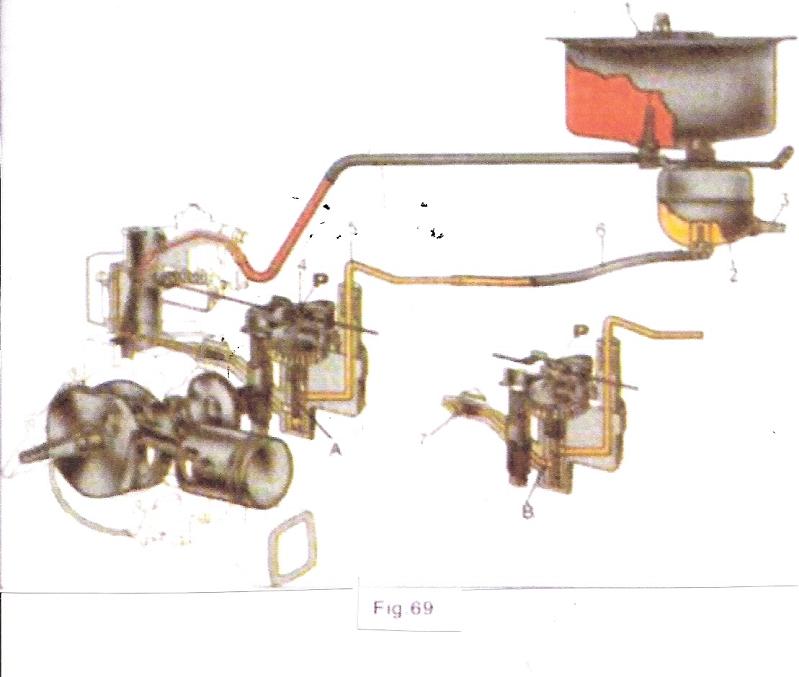

This is minor but the photo of the AOM system [figure 69 on page 39] is upside down. Here's a scan with the right orientation. *

LL75


* Real mechanics know how to turn the manual over, right?

[Robbie]

Ah, that explains why I can't fill my oil or fuel tank.......and here I was blaming gravity...heh,heh.

Now try page 74, engine exploded view and tell me which way is really up.

Rob
