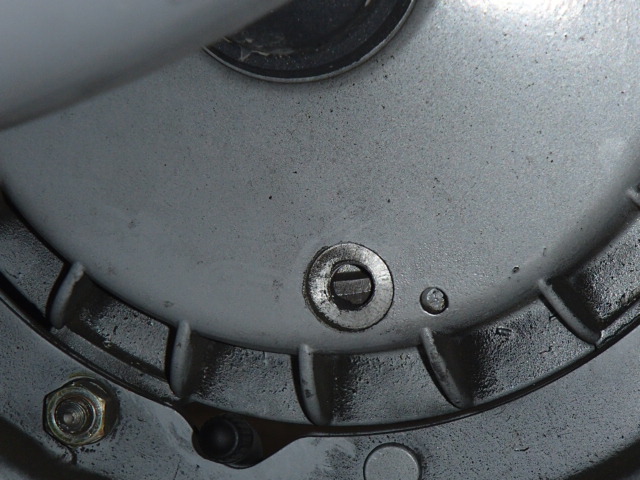

I stopped at a gas station the other day to top up the tires on my 2012 Stella 4T. While filling the rear tire I noticed a hole in the hub that looked to me like it should have something screwed into it.
It's too small to get a finger into to see if it's threaded.
Anybody know if something is missing here?
Ask a stupid question
Moderator: Modern Buddy Staff
-
Nettar
- Member
- Posts: 53
- Joined: Thu May 03, 2012 4:07 pm
- Location: State College, PA
Ask a stupid question
- Attachments
-
- P7021822.JPG (139.43 KiB) Viewed 557 times
-
- P7021820.JPG (125.01 KiB) Viewed 557 times
-
Robbie
- Member
- Posts: 536
- Joined: Wed Apr 25, 2012 2:46 am
- Location: Desplaines Il.
There once was a plastic screw inserted in that hole.
It is there to inspect the brake shoe pad thickness.
The world won't end without it but you should get a replacement to keep road trash from entering the drum.
Looks like a 6mm thread but any non-factory replacement would have to be very short so as not to hit the brake parts.
Rob
It is there to inspect the brake shoe pad thickness.
The world won't end without it but you should get a replacement to keep road trash from entering the drum.
Looks like a 6mm thread but any non-factory replacement would have to be very short so as not to hit the brake parts.
Rob
